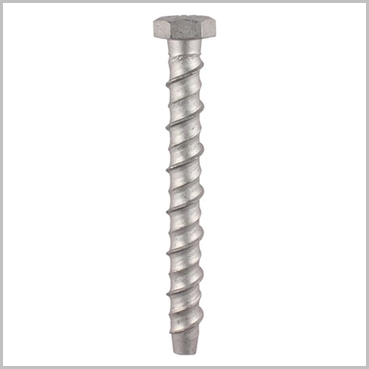

10 x 60mm Multifix Concrete Bolts Hex

Description

10 x 60mm Multifix Concrete Bolts are ready for next day delivery or collect in Sandyford, Co.Dublin.

10 x 60mm Multifix Concrete Bolts Hex head is a stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.

The Multi-Fix Masonry Bolts – Hex Flange – Exterior – Silver ARE designed to replace traditional expansion anchors

Timco micro plating (Nano) technology gives a higher resistance to corrosion

High-Low parallel threads for ease of insertion and high pull-out values

Removable & adjustable non-expansion through fixing

Unique concave thread configuration

BS7671:2018 IET Wiring Regulations (Eighteenth edition)

Technical Data:

Concrete ≥25N/mm2
Drill Hole Ø (mm) 10.0
Min. Embed. Depth (mm) 50
Min. Drill Hole Depth (mm) 70
Deeper Embed. Depth (mm) 75
Rec. Tensile Load (kg) – Min. Embed. Depth 5.49
Rec. Tensile Load (kg) – Deeper Embed. Depth 12.21
Min. Over-Drill for Dust (mm) 20
Min. Centre Spacing (mm) 150
Min. Edge Distance (mm) 75
Min. Structure Thickness (mm) 110
Max. Rec. Load (kg) – Min. Embed. Depth 549
Max. Rec. Load (kg) – Deeper Embed. Depth 1221

Fletton Brick 30N/mm2
Drill Hole Ø (mm) 10
Min. Embed. Depth (mm) 50
Min. Drill Hole Depth (mm) 70
Rec. Tensile Load (kN) 3.18
Max. Rec. Load (kg) 318
Min. Over-Drill for Dust (mm) 20
Min. Centre Spacing (mm) –
Min. Edge Distance (mm) –
Min. Structure Thickness (mm) –

Cheshire Brick 45N/mm2
Drill Hole Ø (mm) 10.0
Min. Embed. Depth (mm) 50
Min. Drill Hole Depth (mm) 70
Rec. Tensile Load (kN) 3.26
Max. Rec. Load (kg) 326
Min. Over-Drill for Dust (mm) 20
Min. Centre Spacing (mm) –
Min. Edge Distance (mm) –
Min. Structure Thickness (mm) –

Class B Eng. Brick 75N/mm
Min. Embed. Depth (mm) 50
Min. Drill Hole Depth (mm) 70
Rec. Tensile Load (kN) –
Max. Rec. Load (kg) –
Min. Over-Drill for Dust (mm) 20
Min. Centre Spacing (mm) –
Min. Edge Distance (mm) –
Min. Structure Thickness (mm) –

Applications:
Masonry fixings, concrete fixings, concrete block work, brick work, thunder bolts.
