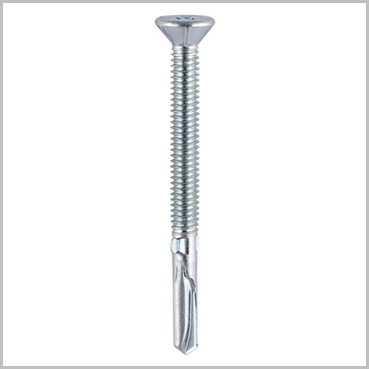

5.5 x 65mm Timber to Heavy Thick Steel Screws

Description

5.5 x 65mm Timber to Heavy Thick Steel Screws are ready for next day delivery or collect in Sandyford, Co.Dublin.

5.5 x 65mm Timber to Heavy Thick Steel Screws for attaching timber to heavy gauge steel of up to 12mm.

These Timco screws have a fine self tapping thread with wings designed to ream out the timber so the screw can achieve max rpm with out burning out.
When the wings hit the metal they will break off like all tek screws to allow the thread to tap into the metal.

200 screws per box and 1 Free PH3 bit.

A PH3 bit is required to help drive the screws into the material.

Technical Data:
Size (mm) 5.5 x 65
Driver Bit Size PH3
To Suit Timber (mm) 14 – 29
Pack Type Box
Pack Qty 200
Included Items PH3 S2 Bit (Qty 1)
Finish Zinc
Head Type Countersunk with Ribs
Thread Type Metric
Point Type Self-Drilling No.5
Corrosion Rating (1-5) 1 – Clean, dry & low humidity environments
Material Case & Core Hardened Carbon Steel
Salt Spray Resistance (Hrs) Tested to BS EN 9227 48
Substrates Steel, Timber
MOQ Increment 1
MOQ 1
Packs per Carton 12
Packs per Pallet 288
Pallet Qty 57600
MDT (mm) 12
Approval BS EN 10666 (DIN 7504)
Wing Tip Width (mm) 7
Head Ø (mm) 11

Applications:
Timber to heavy gauge steel, wood to steel, timber to steel fixings, heavy gauge steel tek screws, tek screws for thick steel, wing tip heavy gauge screws, roofing screws.
