Description
Truss Clips 47mm are ready for next day delivery or collect in Sandyford A94RT18, Co. Dublin.
Truss Clips 47mm are galvanised for light protection against rust.

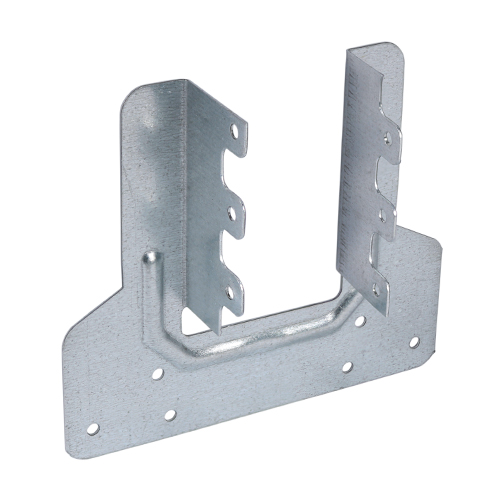

Truss clip brackets are used for fixing trusses, girders and rafters to a wall plate. Can also be used for general applications as a multi-purpose connector to provide restraint whenever two timber members cross.
Truss Clips provide an inexpensive and effective method of fixing trussed rafters to wallplates
Technical Data
Brand TIMCO
Carton Qty (packs) 125
Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
Finish Galvanised
Material Carbon Steel
MOQ 25
MOQ Increment 25
Nail Holes (3.75mm) 12
Pack Dimensions L x W x H (mm) 150 x 47 x 40
Pack Qty 1
Pack Type Unit
Pack Weight (kg) 0.08
Safe Working For BS5268 (kN) Short Term 3.18
Thickness (mm) 1
Total H (mm) 110
W (mm) 47
Applications:
construction, timber frame, timber sheds, timber fencing, carpentry, joinery
